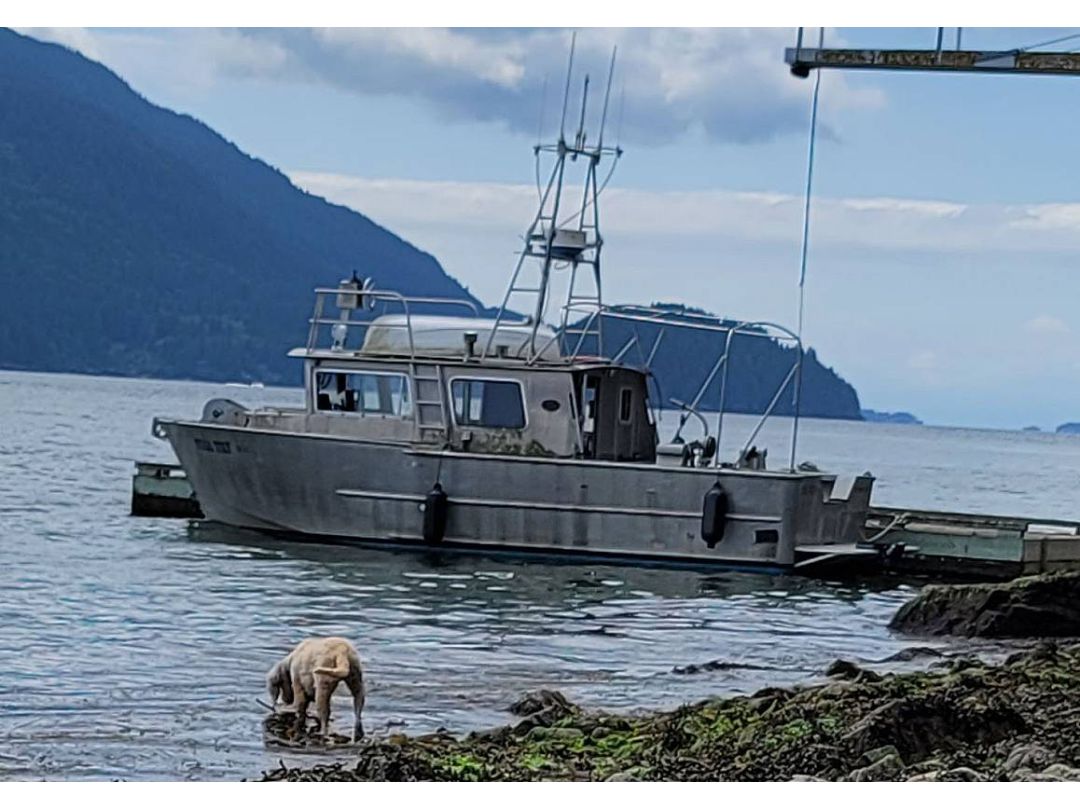

Western Shore
Western ShoreStock # PA5602
Reduced to $1,300,000(CAD)
Reduced to (USD)Dimensions: 76' x 21'5"
Year: 1989
Model: Expedition Yacht
Engine: 500 hp CAT 3412
Hull: Aluminum
All aluminum, Western Shore is an expedition, charter, or personal yacht suited for any trip or adventure anywhere. Well appointed, the interior has good-sized berths and lounges up and down that can be used for many applications. There is abundant exterior deck space on three levels plus under deck storage with freezing capability.
Western Shore also would be a good crew boat or work boat as well as work charters or patrol boats. Or perhaps a mother ship to small boat fisheries or kayak fleets. There are many features to help with all these uses.
Dependable Cat power is backed up with "go home" system off auxiliary engine. As much electrical power as you can need from the gensets. Hydraulic power is able to manage the hydraulic stern ramp/dock, the hiab crane, or just a little fishing stuff. Large newer (2019) pumps can move water quickly if needed. Mechanically sound, the vessel has much redundancy.
There are many features still to be written about. But some time on the phone can be enlightening. The owner will also modify the sale somewhat by removing or adding items to the vessel. So give us a call even if not quite what you want (yet!).
Currency data courtesy coinmill.com
Details
Overview
- Built by Shore Boat Builders Ltd. in 1989
- Designer: John Brandlemayr Ltd.
- 76' x 21'5" x 9'
- Vessel is all aluminum
- 62' x 21'5"
- 14 feet and housework added 2002
Engines / Mechanical
- Main engine: Cat 3412 500 hp 1993
- Auxilary engine: Isuzu 6RB 175 hp (powering 3 hydraulic drives)
- Genset #1: Isuzu 4BB1 - 25kW
- Genset #2: Isuzu 4 cylinder - 30kW
- Genset #3: Isuzu 3KR1 - 12kW
- Reduction gear: Twin disc MG520 4:1
- Shaft: Stainless steel
- Propeller: Stainless steel, 4 blade, 64" x 50.5"
- Hydraulic bow thruster
- Hydraulic stern thruster
- Fuel tanks: 3, total capacity 18,000 liters (estimated)
Accommodations

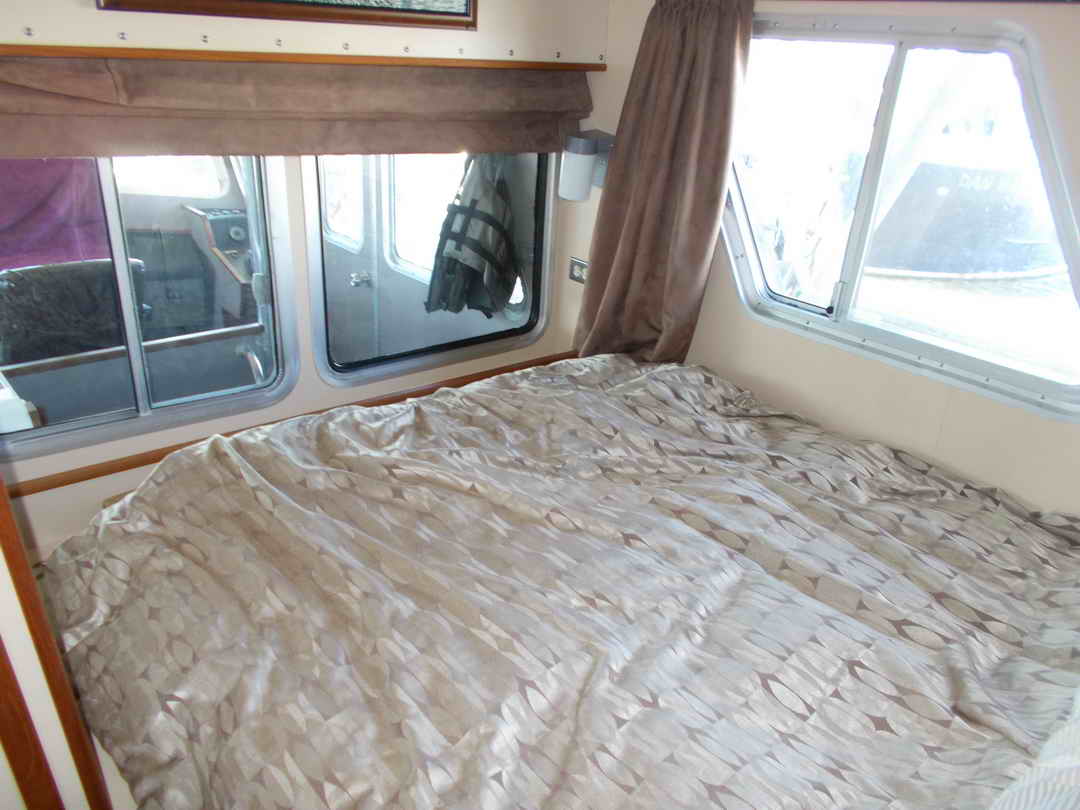

- Main deck has 8 bunks in three staterooms
- Upper deck has master stateroom with full en suite
- Lower deck has two bunks
- Head and full shower on main deck
- Both heads are vacuum flush (2020)
- Showers are full size with change area
- Sauna on lower deck with full shower
- Domestic water: 2 tanks, total capacity 2,900 gallons (estimated)
- Black water holding: 200 gallons (estimated)
Galley
- Fridge / Freezer: Foster (approximately 15 cu. ft. each)
- Dishwasher: Fridgidaire
- Combination microwave / convection oven: Kenmore
- Stove / Oven: Garland with 2 grills and 2 burners and Rangaire hood
- Galley sink: Double stainless steel
- Exhaust fan
- Vacuum cleaner
- CD player and stacker
Electronics
- Satelite compass: JRC (2018)
- GPS: Furuno GP50 and GP32 x 2
- Autopilot: ComNav 2001 (2018)
- Radar: 2 x Furuno 48 mi.
- Sonar: Furuno CH14
- Sonar: Furuno CH26
- Sounder: Furuno and Sitex
- SSB: Icom IC M 700
- VHF: Kenwood TKM 407
- VHF: Icom IC M 601
- VHF: Icom IC 100
- Rudder indicators: 3
- Watch alarm: Oceanwake
- Loud Hailer: Raytheon Ray 410
- Intercom and video surveillance system: Sylvania
- Engine controls: 3 x Mathers Electronic
- Spotlight
- Satelite TV (2018)
Additional
- Anchor winch: Pilkington
- Anchor: Northill style
- Crane: Hiab 102-5 ([email protected] M)
- Floodlights: Halogen
- Hydraulic puller for poles
