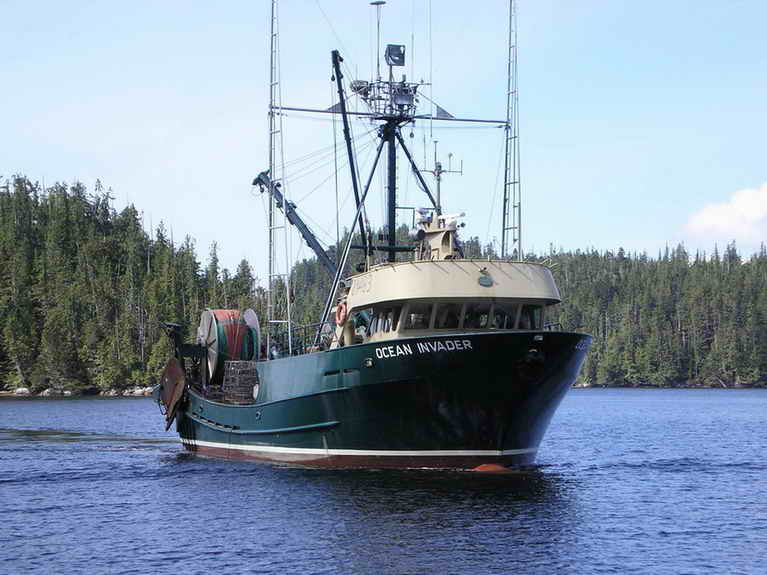

80' Packer, trawler, longliner and seiner. Huge hold capacity of 120 tons in RSW with a state of the art system for easy service. This vessel has been ad measured to register in the US with an ABS certificate. 3508 CAT main, 350 hp Isuzu auxiliary, 2 gensets - one 100 kW and the other 30 kW. Excellent electronics with Furuno Omni sonar.
This vessel has worked in Canada, the US and Mexico and is an offshore vessel.
Call or email for location and viewings.
|
|
- Overview
- Built in 1980 (rebuilt in 2001) by Allied Ship Builders
- Location: Lower Mainland, BC
- 80' x 29' x 11' with over 6' headroom
- Survey: 2020
- Power
- Engine: CAT 3508, 805 hp diesel
- Engine hours: Approximately 29,000 and approximately 6,000 since overhauled at 23,000 hours
- Reduction gear: Twin Disc
- Ratio: 3.26:1
- Fuel tanks: 8, steel, 17,000 US gallons total capacity
- Propeller: 4 blade steel with fixed 28' kort nozzle with beaver tail protection
- Engine alarm
- Engine fans
- Heat exchanger: Hull integral cooling
- Auxiliary engine: Isuzu with Hytar PTO, 350 hp
- Hydraulic pumps: 6 x Vicker 35-60 / tank: 250 gallons
- Genset: 100 kW and 30 kW
- Freezer drive: Daewoo (2) runs dual compressors
- Compressors: 2 screw compressors in lazerette for RSW system - drops 3 degrees Celsius per hour
- Gorman Rupp (2) - 3" 440 vac electric / fluid power (2) - 1 -2" 440 vac electric / 1-2" hydraulic / auto electric - 3500g / HR / condenser - 2" 440 vac electric glycol pump - 10 hp 2.5
- Coolng: Keel cooled
- Structural
- Hull: 3/8 steel
- Decks: 1/4" steel
- Superstructure: 1/4 steel with aluminum top house
- Mast: Steel A-frame
- Boom: Single schedule 80 with 3 Pullmasters
- Holds: 6 foamed and fiberglass holds - 10" foam, 715 cubic feet each / 850 cubic feet aft tanks
- Bow and stern thrusters
- Anchor: 2 - 350 lb Navy, rode length: 25 fathoms chain 100' line - not pulled
- Winches: 3 Pullmaster PL10
- Electronics
- VHF: Kenwood TKM 507 and Icom M402S
- Computer: MaxSea program for navigation
- Computer: PC with 3 flat screens
- Radar: Furuno CH-5 Omni sonar
- Sideband (SSB): Kenwood TKM 707
- Spotlight
- Autopilot: ComNav 2001 with remote
- Compass: Saura 8" # 2149
- Batteries: Main bank - 4-8D for 32V main engine / 2 12 -24V hydraulic engine / 1 -8D 12V / 1-1000 C.C.A / 2-1000C.C.A bath generators
- Steering stations: 2, Wagner, double piston
- Accommodations
- Sleeps: 4 staterooms / 9 berths
- Stove, fridge and freezer: Maytag (2002)
- Sink: Double stainless steel with hot and cold
- Water tanks: 2, steel with cement liner, 2000 gallons in the fore peak
- Shower
- Hot water: 35 gallons in 110 AC
- Head
- Microwave: Sanyo, 2 cubic feet
- TV in dinette
- Air conditioning system throughout
- Additional
- Drag gear is extra - 2 trawl winches and net reels
|
